Lightning headphone automatic test system

In order to solve the problem that Apple products cannot be directly controlled on the market, this solution uses the development of a WIFI-based APP (named: APPForIphone) on the Apple ipod touch to assist the test, so as to achieve the ability to play different test signals according to different test items. Audio test Parameters: Headphone Total Harmonic Distortion, Headphone Frequency Response, Microphone Frequency Response / Smartness, Microphone Total Harmonic Distortion.
  • Features
  • Specification
  • Options and upgrades
  • Resource centre
    • Commodity name: Lightning headphone automatic test system
    • Commodity ID: ABTEC-0800

    In order to solve the problem that Apple products cannot be directly controlled on the market, this solution uses the development of a WIFI-based APP (named: APPForIphone) on the Apple ipod touch to assist the test, so as to achieve the ability to play different test signals according to different test items. Audio test Parameters: Headphone Total Harmonic Distortion, Headphone Frequency Response, Microphone Frequency Response / Smartness, Microphone Total Harmonic Distortion.

    I. Function Overview

    In order to solve the problem that Apple products cannot be directly controlled on the market, this solution uses the development of a WIFI-based APP (named: APPForIphone) on the Apple ipod touch to assist the test, so as to achieve the ability to play different test signals according to different test items. Parameters: Headphone Total Harmonic Distortion, Headphone Frequency Response, Microphone Frequency Response / Smartness, Microphone Total Harmonic Distortion.

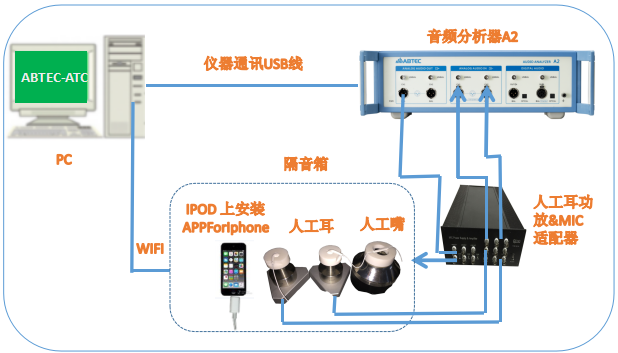

    System block diagram




    Third, the test principle




    3.1 Headphone audio test:

    When the A2 audio analyzer starts the test, the artificial mouth plays the signal, and at the same time sends a command to the Apple ipod touch via WI-FI to start recording. The file formed by the recording is returned to A2 via WI-FI, and the analysis forms a frequency response curve.

    3.2 Microphone audio test:

    When the A2 audio analyzer starts testing, it sends instructions to the Apple ipod touch via WI-FI to start playing the signal. The signal received by the artificial ear returns to A2, forming a frequency response curve.
